Description
The 1.5MHz transducer module (TRM) is currently towards the lower end of our frequency range, and is designed for maximum penetration of thick GFRP and thick, out-of-autoclave CFRP with porosity. Applications include wind turbine blades, marine GFRP and thick section GFRP piping. Typical component thicknesses are around 1-60mm.
Technical Details
Transducer Type Matrix (2D-array)
Transducer Elements 64×64 (4,096)
Transducer Aperture 32 x 32 mm
Element Pitch 500μm
Center Frequency 1.5MHz
-6dB Frequency Bandwidth 110%
Sample Rate 50 MHz
Acquisition Rate A-scans 100,000 – 500,000 datasets per second
Acquisition Rate 10-40 3D volumes per second
Size And Weight
Width 40mm / 1.5”
Length 40mm / 1.5”
Height 84mm / 3.3”
Weight 265 grams / 0.5lbs (excluding cable and delay line)

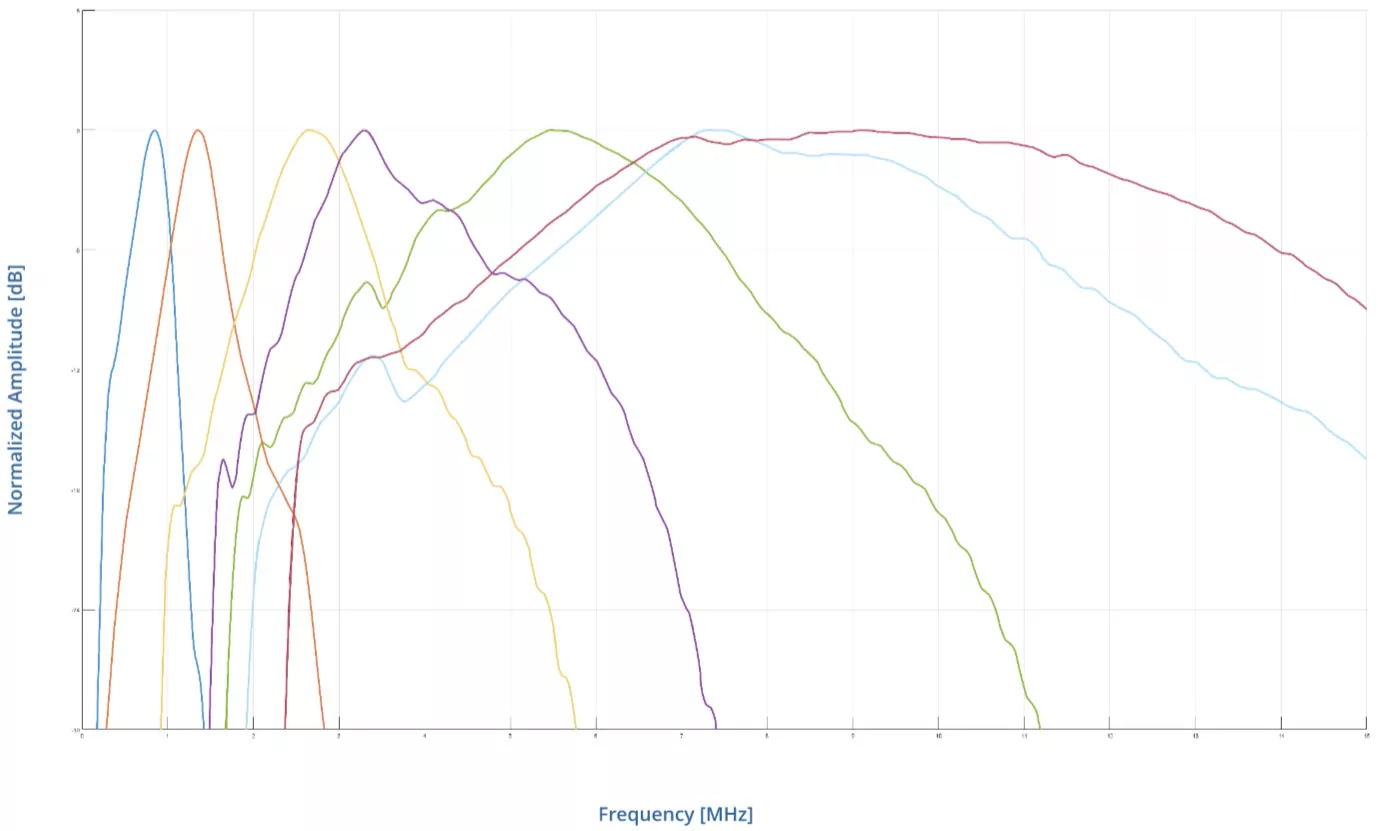

BLUE-TRM 0.7 MHz
ORANGE-TRM 1.5 MHz
YELLOW-TRM 2.5 MHz
PURPLE-TRM 3.5 MHz
GREEN-TRM 5.0 MHz
RED-TRM 8.0 MHz
DARK RED-TRM 10.0 MHz
