IPLEX TX II

lei0.00

Better Imaging in Small Spaces

The ultra-thin IPLEX TX II video borescope is available with a 2.2 mm diameter flexible scope or a 1.8 mm rigid scope. Using the flexible scope, you can obtain a wide field of view in spaces where the opening is very small for faster inspections and easier decision making. Combining high image quality and user comfort, the IPLEX TX II video borescope enables efficient inspection of castings, molds, and other parts with small cavities.

120-degree field of view to observe a wide area at once, helping speed up inspections

High-pixel CMOS sensor delivers excellent image quality

Bright LED illumination enables you to see better in large spaces

Image adjustment methods—like image turning and halation reduction—make it easier to see in reflective areas and capture clear, low-noise images

Scene mode enables you to create two image setting configurations and toggle between them

Inspect in Smaller Spaces

Access small openings with the 2.2 mm insertion tube

Insertion tube with a 2 mm shorter rigid distal end compared to the original IPLEX TX combined with improved hardness and articulation control, making it easier to maneuver in smaller spaces

The insertion tube’s articulating section has a tungsten outer braid for added protection, while its shortened length help keep it from getting stuck

The rigid insertion tube’s air injector enables you to blow liquid droplets away to obtain clearer images^*

*The protection sleeve is required to use the air injector.

Stay Comfortable During Long Inspections

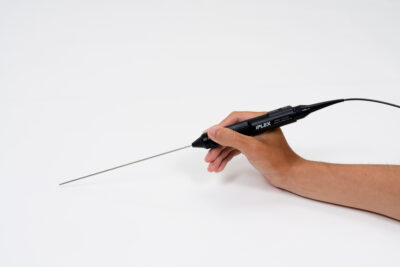

Ultra-lightweight rigid scope weighs as much as a ballpoint pen, so there’s less strain when you’re holding it for long periods of time

Extend the grip to grasp the tube closer to the insertion point for finer control

Images are displayed on a tablet, so you can position it where it’s comfortable

Durable and Flexible

The flexible insertion tube’s articulation section improves its overall durability

Metal braiding in the articulation section provides additional protection and wear resistance

For applications where it’s required, the optional rigid scope enables you to acquire high-quality images and pass through openings as small as 1.8 mm

With the rigid scope’s CMOS imaging sensor, images still transmit to the screen if the tube is slightly damaged

Scope Unit

Model No.		Flexible scope unit: IV10212TF	Rigid scope unit: IV10212TR
Insertion tube	Scope diameter	Φ2.2 mm	Φ1.8 mm
	Scope length	1.2 m (3.9 ft)	180 mm (0.59 ft)
	Distal end length*1	7.85 mm (0.31 in.)	-
	Exterior	High durability metal braid with special processed resin	-
	Tube flexibility	Uniform stiffness	-
Optical system	Direction of view	Forward
	Field of View	120°
	Depth of field*2	3–80 mm
Articulation Section	Articulation angle	120° (up/down)	-
Articulation Section	Articulation mechanics	Direct manipulation	-
Approx. weight		255 g (0.56 lb)	182 g (0.4 lb)

Control Unit

Model No.	IV10200T
Weight	350 g (0.77 lb)
Dimensions (L × Φ)	172 × 52 mm (6.77 × 2 in.)
Illumination	High-intensity white LED
Power supply	USB power supply
USB connector	Type C connector, Version 2.0 standards

Software Functions

Image manipulations		2x digital zoom, 12-step manual or 8-step auto brightness control
Gain control		2-step adjustable gain control (manual or auto)
Sharpness control		3-step adjustable sharpness control
Saturation control		3-mode adjustable color saturation control (monotone, natural, vivid)
Overlay		Date/Time, logo, and system setting
Still image recording	Resolution	H500 × V500 (pixels)
Still image recording	Recording format	Compressed JPEG format
Video recording	Resolution	H392 × V392 (pixels)
	Recording format	MPEG-4 AVC/H.264
	Frame rate	30 fps

Operating Environment

Operating temperature	Insertion tube	In air: -25 to 80 °C (-13 to 176 °F), In water: 10 to 30 °C (50 to 86 °F)
Operating temperature	Other parts	In air: -10 to 40 °C (14 to 104 °F)
Relative humidity	All parts	15 to 90% (relative humidity)
Liquid resistance	All parts	Operable when exposed to machine oil, light oil, or 5% saline solution
Waterproofing	Insertion tube	Operatable underwater up to a water pressure equivalent to a depth of 1.2 m
Waterproofing	Other parts	Operable in blowing rain conditions; not operable under water

*1 Indicates the length of the rigid portion at the scope's distal end. *2 Indicates the viewing distance with optimal focus.

Accessories

Protection Braid for IV10212TF

Model No.	MAJ-2537
Weight	5.6 g (0.01 lb)
Outer diameter	Φ2.8 mm (0.1 in.)
Braid length	Approx. 1 m (3.3 ft)

Protection Sleeve for IV10212TR

Model No.	MAJ-2538
Weight	32 g (0.07 lb)
Outer diameter	Φ2.3 mm (0.09 in.)
Sleeve length	162 mm (0.5 ft)
Air tube outer diameter	Φ4 mm
Maximum air pressure	0.7 Mpa

Grip Extender for IV10212TR

Model No.	MAJ-2540
Weight	53 g (0.12 lb) (total of three)
Dimensions (L x Φ)	30 × 14 mm (1.2 × 0.6 in.) 48 × 14 mm (1.9 × 0.6 in.)

Protection Box

Model No.	MAJ-2536
Dimensions (W × H × D)	400 × 300 × 150 mm (15.7 × 5.9 × 11.8 in.) (excluding protrusion)
Weight	2.2 kg (4.85 lb)
Waterproofing	IP52 dustproof and splashproof

Carrying Case

Dimensions (W × H × D)	455 mm × 185 mm × 330 mm (17.9 in. × 7.3 in. × 13 in.) (excluding protrusion)
Weight	2.1 kg (5 lb)

Tablets Tested for Compatibility

Microsoft Surface Pro9	Intel Core i5, 8 GB RAM, Windows 11 Pro (64 bit)
Panasonic FZ-G2	Intel Core i5, 8 GB RAM, Windows 11 Pro (64 bit)

· May not work when combined with other software. · If you are going to use the IPLEX TX II software with a tablet other than those listed above, please refer to the recommended tablet specifications below. · If you have any questions, please contact your local Evident representative.

Recommended Tablet Specifications

CPU	Intel Core i5
RAM	8 GB or larger (dual channel)
HDD	8 GB free space or more
Display resolution	1280 × 800 or more
External terminal	USB TypeC
OS	Windows 11 Pro (64bit)
Others	IEC/EN60950-1 or IEC/EN62368-1 compliant

· We do not guarantee that the IPLEX TX II software will work on all tablets that meet the above criteria.

Click to enlarge

Back to products

Category: Videoscopes

Description

Repeatable RVI Results

The IPLEX TX II video borescope offers easier insertion to help you reach your target faster as well as improved image quality that supports your decision making.

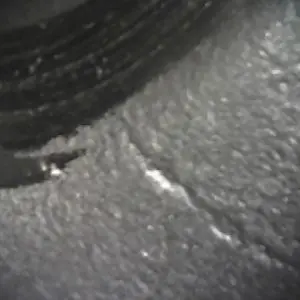

IPLEX TX (predecessor)

120-degree field of view to observe a wide area at once, helping speed up inspections
High-pixel CMOS sensor delivers excellent image quality
Bright LED illumination enables you to see better in large spaces
Image adjustment methods—like image turning and halation reduction—make it easier to see in reflective areas and capture clear, low-noise images
Scene mode enables you to create two image setting configurations and toggle between them

Access small openings with the 2.2 mm insertion tube
Insertion tube with a 2 mm shorter rigid distal end compared to the original IPLEX TX combined with improved hardness and articulation control, making it easier to maneuver in smaller spaces
The insertion tube’s articulating section has a tungsten outer braid for added protection, while its shortened length help keep it from getting stuck
The rigid insertion tube’s air injector enables you to blow liquid droplets away to obtain clearer images^*

Ultra-lightweight rigid scope weighs as much as a ballpoint pen, so there’s less strain when you’re holding it for long periods of time
Extend the grip to grasp the tube closer to the insertion point for finer control
Images are displayed on a tablet, so you can position it where it’s comfortable

The flexible insertion tube’s articulation section improves its overall durability
Metal braiding in the articulation section provides additional protection and wear resistance
For applications where it’s required, the optional rigid scope enables you to acquire high-quality images and pass through openings as small as 1.8 mm
With the rigid scope’s CMOS imaging sensor, images still transmit to the screen if the tube is slightly damaged

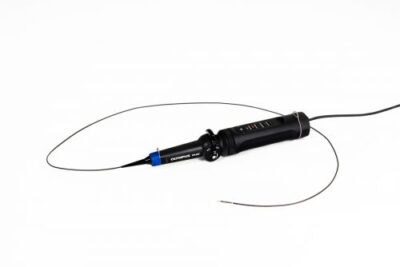

Flexible scope unit

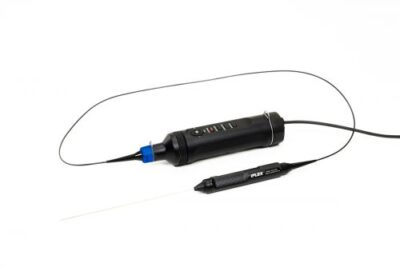

Rigid scope unit
